TOWER-S37.1–21.31 kWh

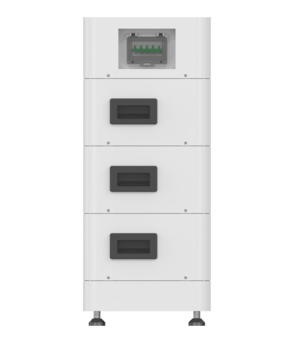

Tower S3 — High-Voltage Battery Tower (7.1–21.3 kWh)
Cost-effective high-voltage LFP tower from 7.1 to 21.31 kWh — 2 to 6 modules, IP54, up to 12 towers parallel for larger homes.
Energy
7.1–21.31 kWh
Voltage / Power
High voltage (HV)
Cycle Life
≥ 6,000 cycles
Protection
IP54
Expansion
Up to 12 towers
Weight
103–263 kg
- ✓Entry-friendly HV storage for hybrid inverters
- ✓TS7 → TS21: 2–6 modules per tower
- ✓Up to 12 towers in parallel
- ✓≥ 6,000 cycles, 10-year design life
- ✓Compact footprint, indoor & semi-outdoor rated
Full Specifications

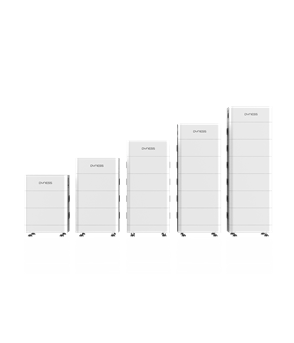

Configurations
Tower TS7
2 modules, 7.1 kWh, 504×380×720 mm, 103 kg
Tower TS10
3 modules, 10.66 kWh, 504×380×920 mm, 143 kg
Tower TS14
4 modules, 14.21 kWh, 504×380×1120 mm, 183 kg
Tower TS17
5 modules, 17.76 kWh, 504×380×1320 mm, 223 kg
Tower TS21
6 modules, 21.31 kWh, 504×380×1520 mm, 263 kg
Battery
Battery Module Type
LiFePO4
Cycle Life
≥ 6,000 cycles
Protection Level
IP54
Expansion
Max. 12 towers in parallel
Specifications are subject to change without notice due to continuous product improvement. Confirm final parameters with our sales team for your order.
