TOWER-PRO7.68–23.04 kWh
Tower Pro — High-Voltage Stackable Battery (7.7–23 kWh)
Modular high-voltage LFP tower for hybrid inverters — 7.68 to 23.04 kWh per tower, up to 12 towers in parallel, all-weather & fire-safe.
Energy
7.68–23.04 kWh
Voltage / Power
High voltage (HV)
Cycle Life
≥ 8,000 cycles
Protection
IP55
Expansion
Up to 12 towers
Weight
109.5–271.5 kg
- ✓HV battery modules (HV9640) for high-efficiency hybrid systems
- ✓Flexible 2–6 module configurations (TP7 → TP23)
- ✓All-weather & fire-safe protection design
- ✓Up to 12 towers in parallel
- ✓≥ 8,000 cycles design life
Full Specifications

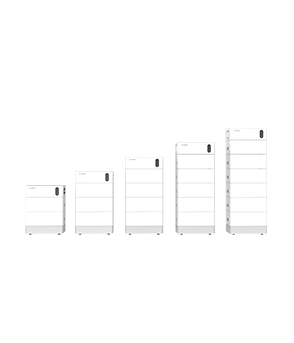

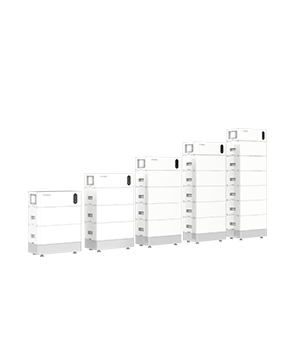

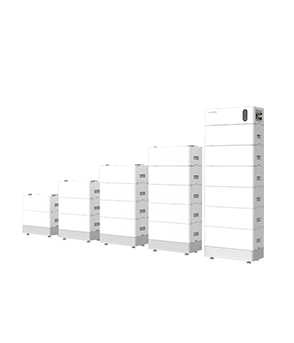

Configurations
Tower Pro TP7
2 modules, 7.68 kWh, 587×310×788 mm, 109.5 kg
Tower Pro TP11
3 modules, 11.52 kWh, 587×310×1009 mm, 150 kg
Tower Pro TP15
4 modules, 15.36 kWh, 587×310×1230 mm, 190.5 kg
Tower Pro TP19
5 modules, 19.2 kWh, 587×310×1451 mm, 231 kg
Tower Pro TP23
6 modules, 23.04 kWh, 587×310×1672 mm, 271.5 kg
Battery
Battery Module Type
LiFePO4
Battery Module Name
HV9640
Cycle Life
≥ 8,000 cycles
Protection Level
IP55
Expansion
Max. 12 Tower Pro units in parallel
Specifications are subject to change without notice due to continuous product improvement. Confirm final parameters with our sales team for your order.
