STACK10015.36–76.8 kWh

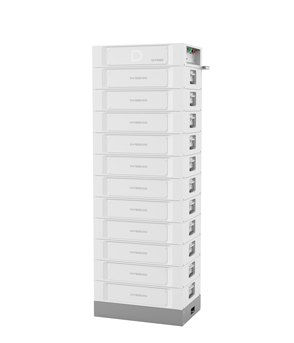

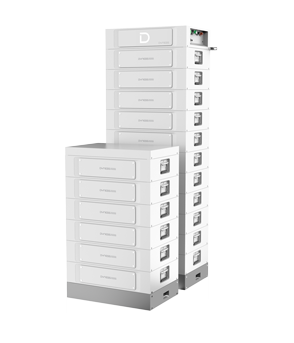

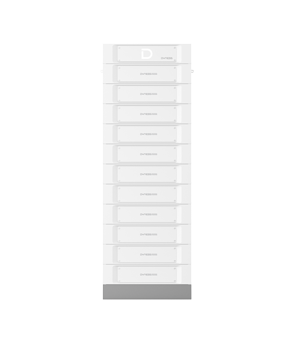

STACK100 — PV + Storage Integrated System (15.4–76.8 kWh)
Plug-and-play PV+storage stack from 15.36 to 76.8 kWh per cluster — 1C charge/discharge, 5S auto fire suppression, new cooling design extends life by 20%.
Energy
15.36–76.8 kWh
Voltage / Power
51.2 V / 100 Ah
Cycle Life
≥ 8,000 cycles
Expansion
Up to 12 clusters
Weight
47 kg / module
- ✓Modular design, plug-and-play installation
- ✓1C charge/discharge for noticeable efficiency boost
- ✓5S auto fire extinguishing protection
- ✓New internal cooling design extends lifespan by 20%
- ✓Scalable multi-scenario: home, shop, small business
Full Specifications
Battery
Battery Module Type
LiFePO4
Module Voltage / Capacity
51.2 V / 100 Ah
System Energy Range
15.36–76.8 kWh
Cycle Life
≥ 8,000 cycles / 10 years
Max Parallel Clusters
Up to 12 clusters
Signal Module Weight
47 kg
Max Single Cluster Dimensions
591 × 390 × 1700 mm
Specifications are subject to change without notice due to continuous product improvement. Confirm final parameters with our sales team for your order.
