POWERBOX-G310.24 kWh

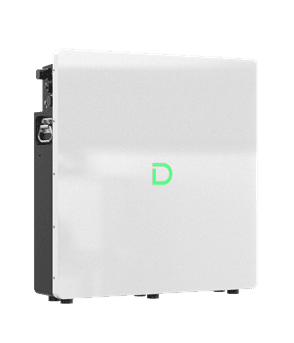

PowerBox G3 — 10.24 kWh Modular Home Battery
Floor- or wall-mounted 200 Ah LFP battery with Wi-Fi + App monitoring, 95% DOD and 10-year warranty — the workhorse of modern home storage.
Energy
10.24 kWh
Voltage / Power
51.2 V
Cycle Life
≥ 8,000 cycles
Protection
IP65
Expansion
Up to 50 units
Weight
100 kg
- ✓Wi-Fi + App real-time energy monitoring
- ✓Built-in aerosol fire extinguisher
- ✓Works with SMA, Victron, Solis, GoodWe, Growatt, Deye & more
- ✓95% depth of discharge, 1C max discharge (200 A)
- ✓Floor- or wall-mount, indoor or outdoor
Full Specifications
Battery
Battery Type
LiFePO4 (LFP)
Nominal Battery Energy
10.24 kWh
Usable Battery Energy
9.728 kWh
Nominal Capacity
200 Ah
Nominal Voltage
51.2 V
Operating Voltage
44.8–57.6 V
Depth of Discharge (DOD)
95%
Cycle Life
≥ 8,000 cycles
Performance
Recommended C Rate
0.5C (100 A)
Max Discharge C Rate
1C (200 A)
Peak Discharge Current
300 A, 2 min
Recommended Charge/Discharge Power
5.12 kW
Max Discharge Power
10.24 kW
Charge Temperature
−20 °C to 55 °C
Discharge Temperature
−20 °C to 55 °C
Physical & Interface
Dimensions (W×D×H)
710 × 165 × 730 mm
Net Weight
100 kg
Protection Level
IP65
Communication
CAN / RS485
User Interface
Wi-Fi + App
Safety Protection
Built-in aerosol fire extinguisher
Installation
Floor-mounted, wall-mounted
Expansion
Up to 50 units in parallel
Warranty Period
10 years
Specifications are subject to change without notice due to continuous product improvement. Confirm final parameters with our sales team for your order.
