DH200Y-C260261 kWh

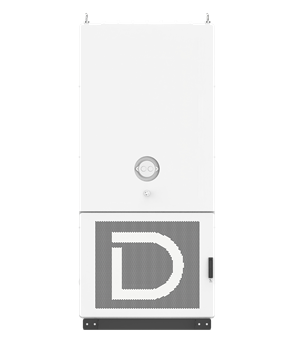

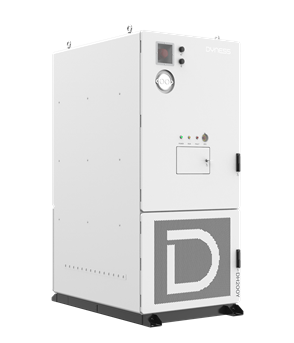

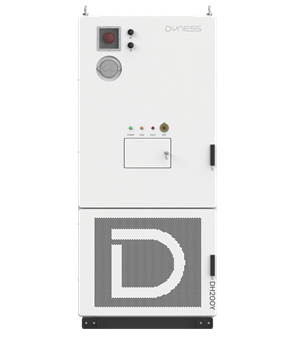

DH200Y-C260 — Liquid-Cooled C&I Storage System (261 kWh)
Liquid-cooled 261 kWh / 125 kW commercial battery — 314 Ah LFP cells, IP55, up to 20 units parallel, 4G/Ethernet/RS485 remote O&M.
Energy
261 kWh
Voltage / Power
754–936 V DC
Cycle Life
≥ 8,000 cycles
Protection
IP55
Expansion
Up to 20 units
Weight
2,800 kg
- ✓261 kWh nominal energy at 125 kW rated power
- ✓Liquid cooling for uniform cell temperature & longer life
- ✓314 Ah LFP cells, high energy density
- ✓Up to 20 units in parallel (5+ MWh sites)
- ✓4G / Ethernet / RS485 cloud monitoring
Full Specifications
System
Battery Type
LiFePO4
Battery Capacity
314 Ah
Nominal Energy
261 kWh
Rated Power
125 kW
Battery Voltage Range
754–936 V DC
Maximum Efficiency
90%
Cooling Method
Liquid cooling
Ingress Protection
IP55
Parallel Expansion
Up to 20 units
Communication
4G / Ethernet / RS485
Physical
Dimensions (W×D×H)
1055 × 1475 × 2400 mm
Weight
2,800 ± 100 kg
Specifications are subject to change without notice due to continuous product improvement. Confirm final parameters with our sales team for your order.
