BF100-C140100 / 140 kWh

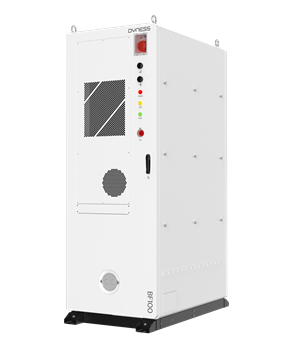

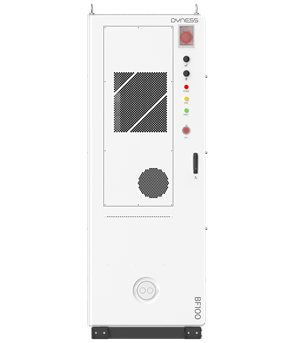

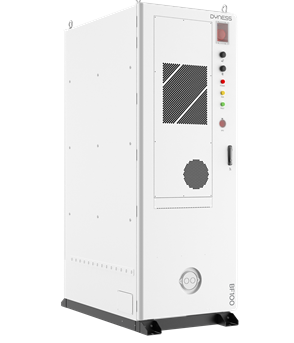

BF100-C140 — Outdoor Air-Cooled Battery Cabinet (100/140 kWh)
Turnkey outdoor air-cooled C&I storage cabinet — 100 or 140 kWh, 320/448 V, up to 94% efficiency, −20 to 50 °C operation, all-in-one enclosure.
Energy
100 / 140 kWh
Voltage / Power
320 / 448 V
Cycle Life
≥ 8,000 cycles
Protection
IP55
Expansion
Parallel cabinets
Weight
1,360–1,650 kg
- ✓100 kWh (BF100-C100E) or 140 kWh (BF100-C140) per cabinet
- ✓Air-cooled, all-in-one outdoor enclosure (850×1320×2350 mm)
- ✓Up to 94% system efficiency
- ✓−20 °C to 50 °C operating range
- ✓Ethernet / RS485 / 4G remote monitoring
Full Specifications
BF100-C100E
Energy Capacity
100 kWh
Rated Voltage
320 V (290–360 V)
Rated / Max Current
157 A / 180 A
Cooling
Air cooling
Protection Level
IP55
Operating Temperature
−20 °C to 50 °C
Efficiency
Up to 94%
Communication
Ethernet / RS485 / 4G
Dimensions
850 × 1320 × 2350 mm
Weight
1,360 kg (approx.)
BF100-C140
Energy Capacity
140 kWh
Rated Voltage
448 V (406–504 V)
Rated / Max Current
157 A / 180 A
Cooling
Air cooling
Protection Level
IP55
Operating Temperature
−20 °C to 50 °C
Efficiency
Up to 94%
Communication
Ethernet / RS485 / 4G
Dimensions
850 × 1320 × 2350 mm
Weight
1,650 kg (approx.)
Specifications are subject to change without notice due to continuous product improvement. Confirm final parameters with our sales team for your order.
